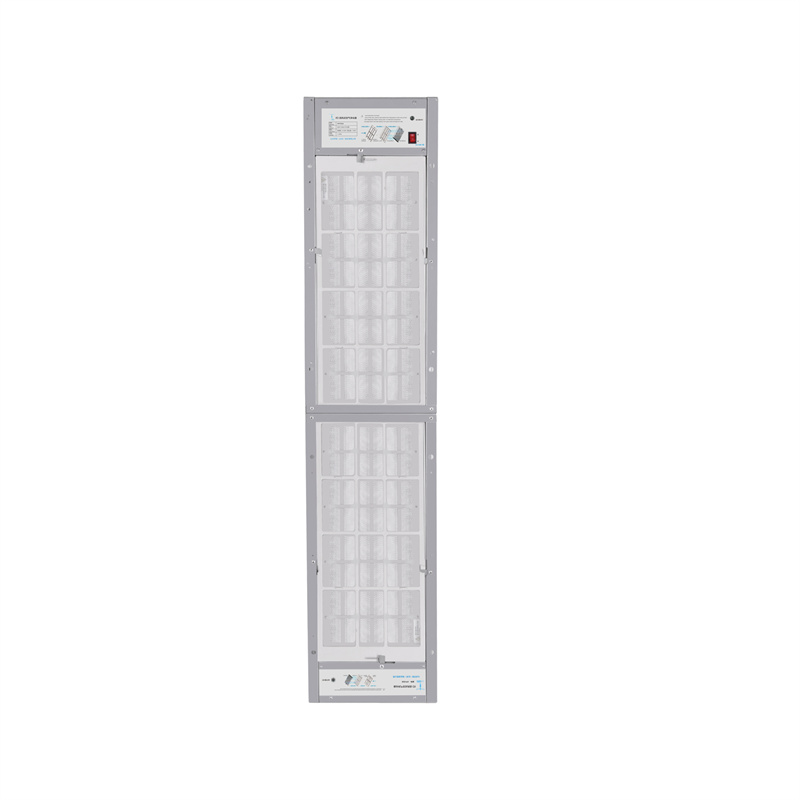

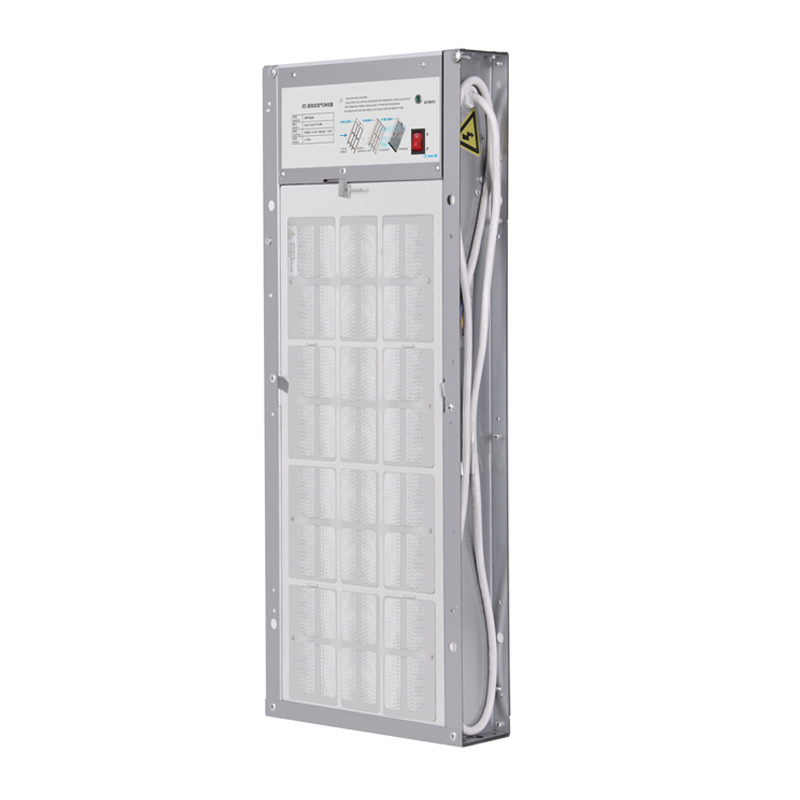

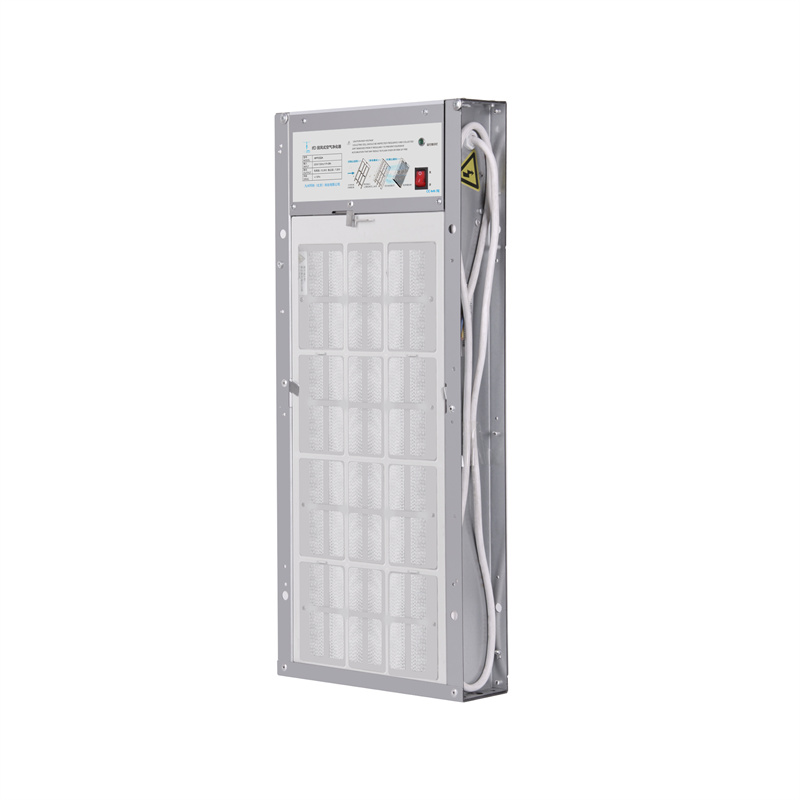

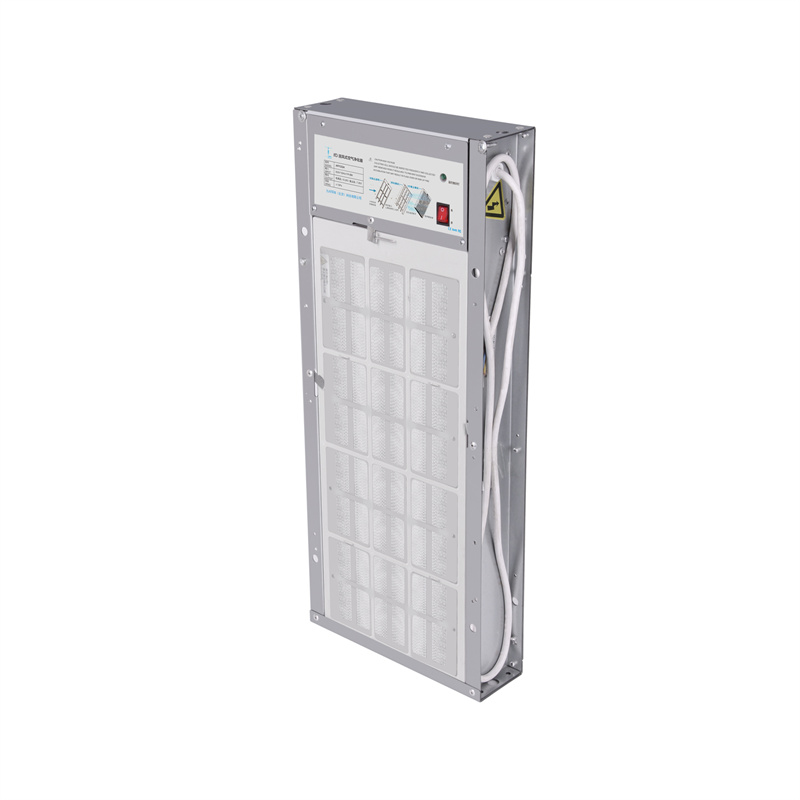

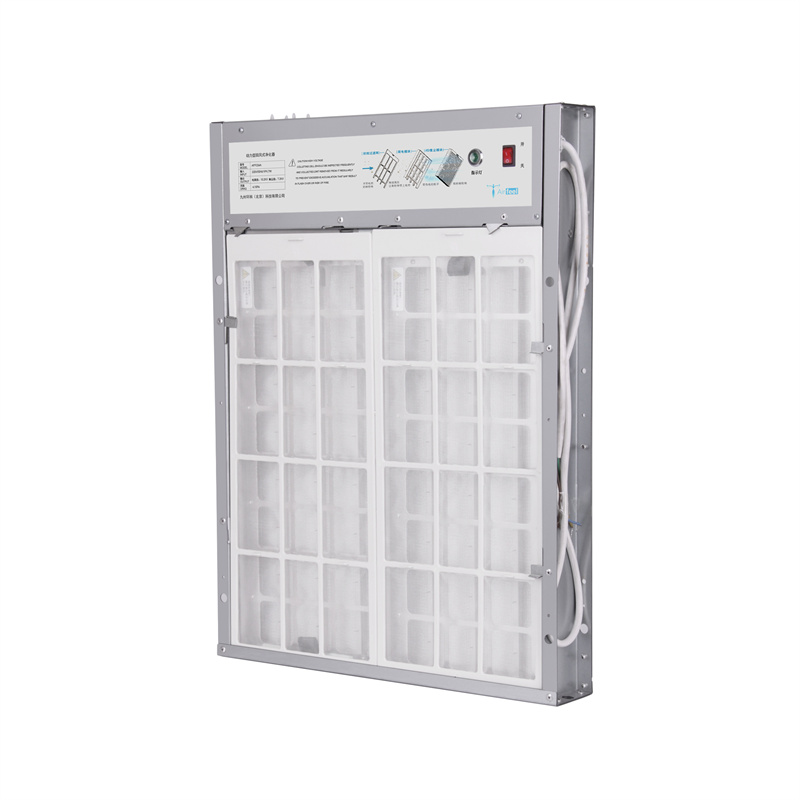

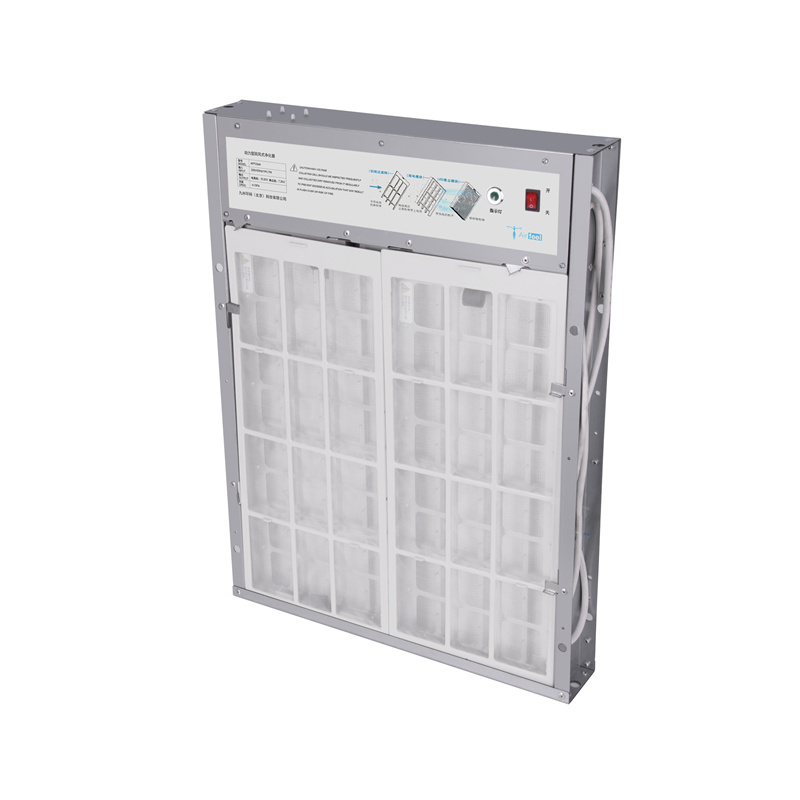

It is used in central air-conditioning units of hospitals, office buildings, shopping malls, schools, and other buildings. Centralized air purification, sterilization, and disinfection treatment can achieve 5-8 cycles of purification treatment in 1 hour with low resistance, energy saving, and high efficiency.
Specification and model |
Hitamer-Q-AU1600 |
Hitamer-Q-AU2000 | Hitamer-Q-AU3000 | Hitamer-Q-AU3400 | Hitamer-Q-AU3800 |
Dimension(mm) |
290x680x200 |
360x680x200 |
540x680x200 |
610x680x200 |
680x680x200 |
Air volume (m3/h) |
1600 |
2000 |
3000 |
3400 |
3800 |
Resistance |
[email protected]/s (excluding initial effect), [email protected]/s (including G4 initial effect) |
||||
Efficiency |
PM2.5 efficiency: 95%@2.5m/s, microbial efficiency: 95%@2.5m/s, white staphylococcus killing rate 99.9%, natural bacteria killing rate 90% | ||||
Status indication |
Power supply indication, cleaning prompt, operation indication |
