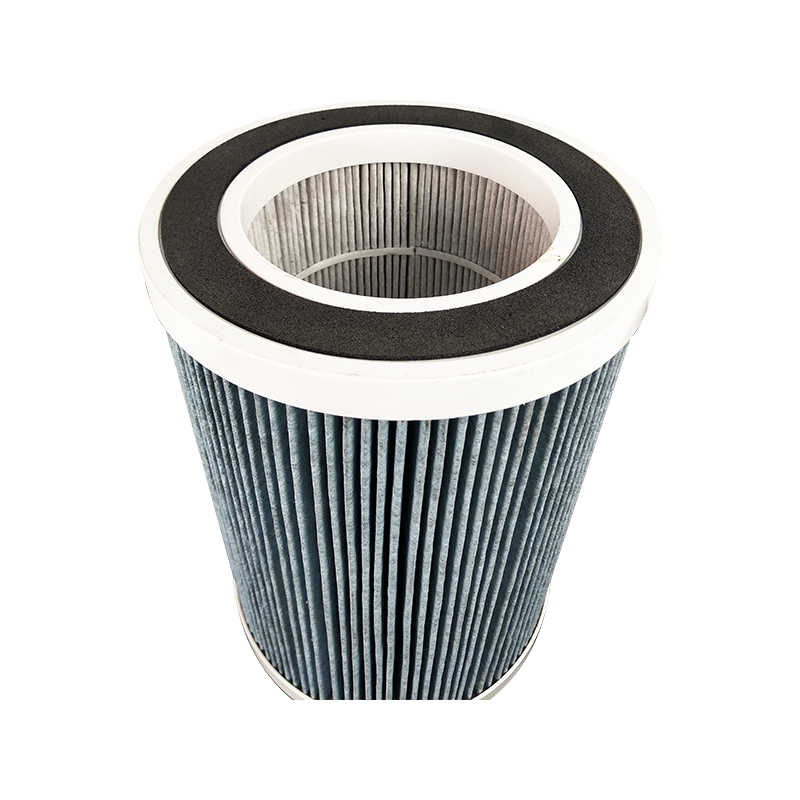

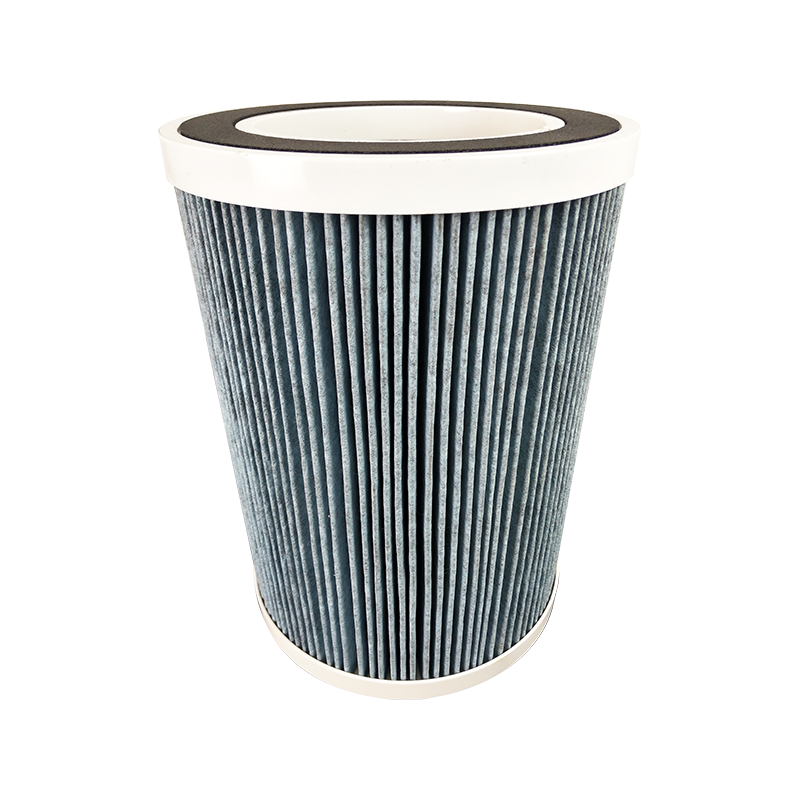

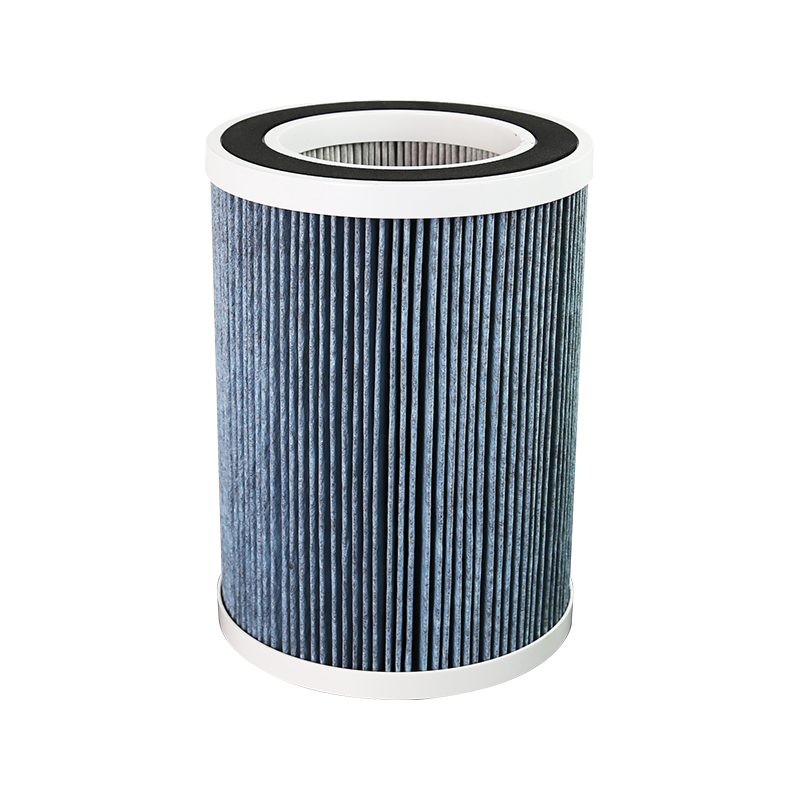

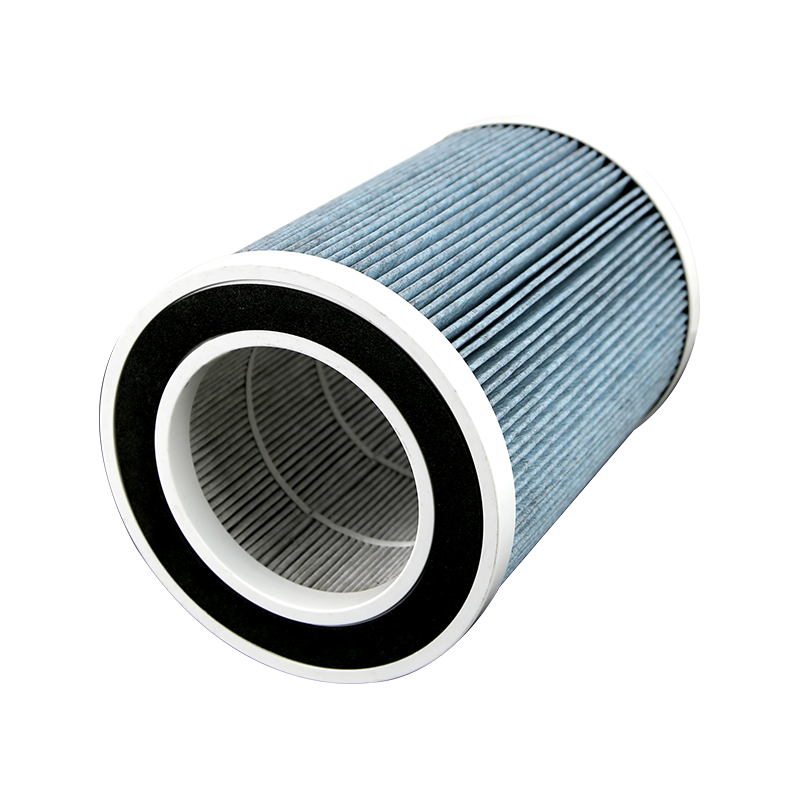

PCC&HEPA cylindrical formaldehyde removal filter uses carbon cloth filter material to enhance the filtration effect on PM2.5, TVOC and other harmful gases. The inner tightly pleated filter paper is cleverly packaged in the PVC end cover to form an efficient cylinder structure. PCC&HEPA cylindrical formaldehyde removal filter is designed for high air flow filtration system to ensure smooth airflow. Products can be customized according to customer requirements. This filter combines advanced technology to meet both basic air purification needs and specific air quality issues.
Material | Material description | Application scenario | Service temperature | Other |
PEFE coated polyester | PTFE-coated polyester material, 0.3μm filtration accuracy of 99.97% | Welding fume, machining, pharmaceutical, cement industry, and viscous media filtration. |
135℃ |
Anti-static, flame retardant, and other functions can be added |
Polyester fiber | Long fiber polyester filter material, can effectively filter all kinds of PM2.5, high wear resistance | Powder spraying, sandblasting, pigment industry, wood processing |
135℃ |
Anti-static, flame retardant, and other functions can be added |
Wood pulp paper fiber | Special air filter, dust removal composite filter paper | Gas turbine, compressor, sandblasting, ash powder, drifting dust, etc |
65℃ |
|
Nanofiber | Ultrafine synthetic fiber, for 0.5μm particles, the filtration efficiency can reach 99.999% | Manufacturing, food, microelectronics industry |
65℃ |
|
Model number | Outer diameter dimension | Bore support | Height dimension |
HK/F3266 |
Φ324mm |
Φ213mm |
660mm |
HK/F3566 |
Φ352mm |
Φ241mm |
660mm |
HK/F3275 |
Φ324mm |
Φ213mm |
750mm |
HK/F3288 |
Φ324mm |
Φ213mm |
880mm |
HK/F3290 |
Φ324mm |
Φ213mm |
915mm |
