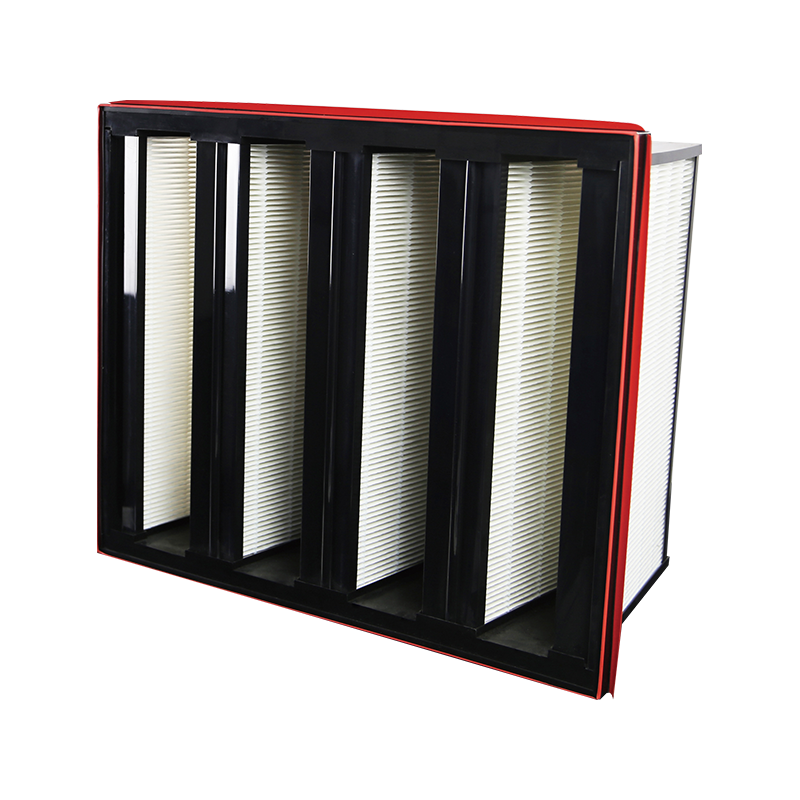

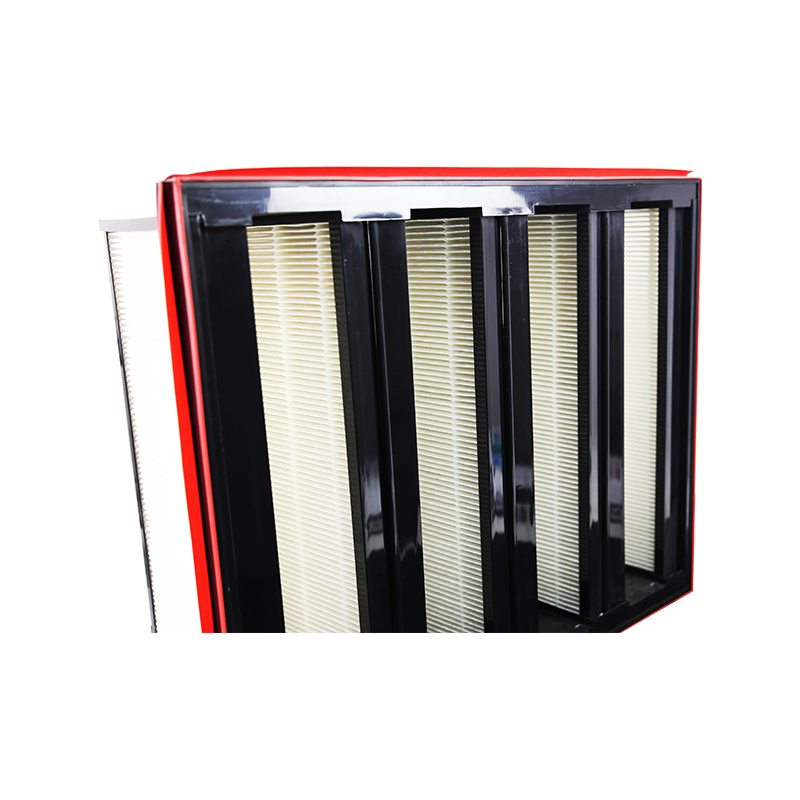

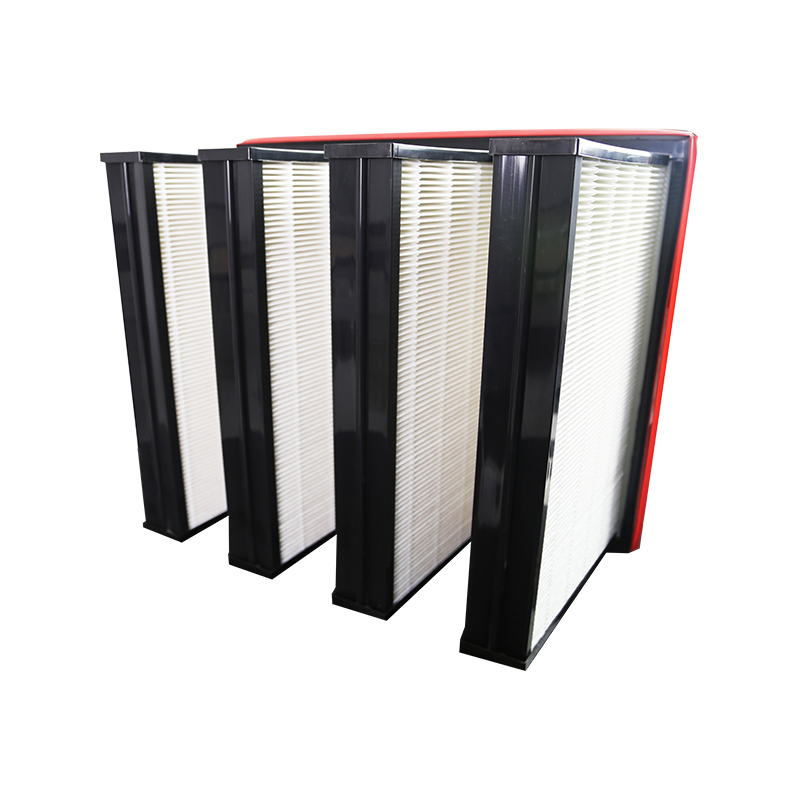

PVC frame V/W type combined high air flow air filter is suitable for high air flow ventilation system, with a wide filter paper media folding area and high dust filtration performance. Filter media of different grades can be chosen according to customer needs, so as to meet the different resistance requirements of the purification unit. This filter design is flexible and can effectively meet the air purification needs of large ventilation systems. Considering the environment, cost and the other factors, we choose paper card, plastic, or aluminum as the filter’s frame. This kind of air filter has a large expansion media area and high dust capacity. Filter paper grades can also be customized according to different resistance requirements of the purification unit.

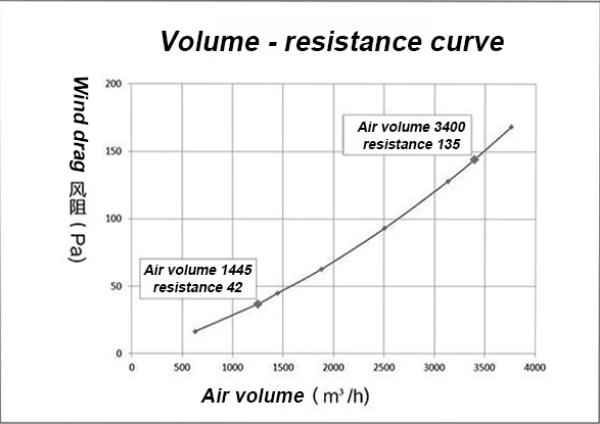

Model number | Standard size | Filtration grade | Test air volume | Initial resistance | Final resistance | Dust capacity |
WxLxH(mm) |
(EN1822) |
(m3/h) |
(Pa) |
(Pa) |
(g) |
|
5V-FG |
592x592x292 |
E11 |
1445 |
42 |
400 |
720 |
5V-FG |
592x592x292 |
E11 |
3400 |
135 |

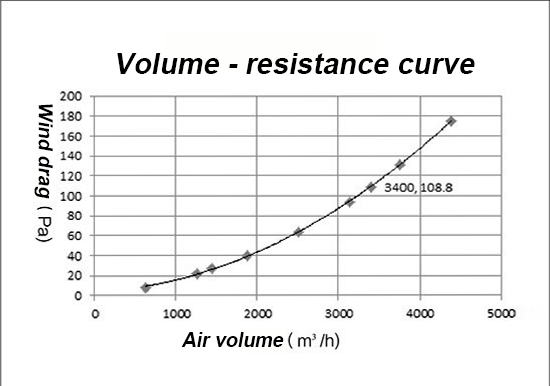

Model number | Standard size | Filtration grade | Test air volume | Initial resistance | Final resistance | |
WxLxH(mm) |
(ISO16890) |
(ASHRAE52.2) |
(Pa) |
(Pa) |
(Pa) |
|
5V-PP |
592x592x292 |
ePM1>70% |
MERV16 |
42 |
110 |
220 |
5V-PP |
592x592x292 |
ePM1>70% ePM2.5>80% ePM10>90% |
MERV16 |
135 |
100 |
200 |
