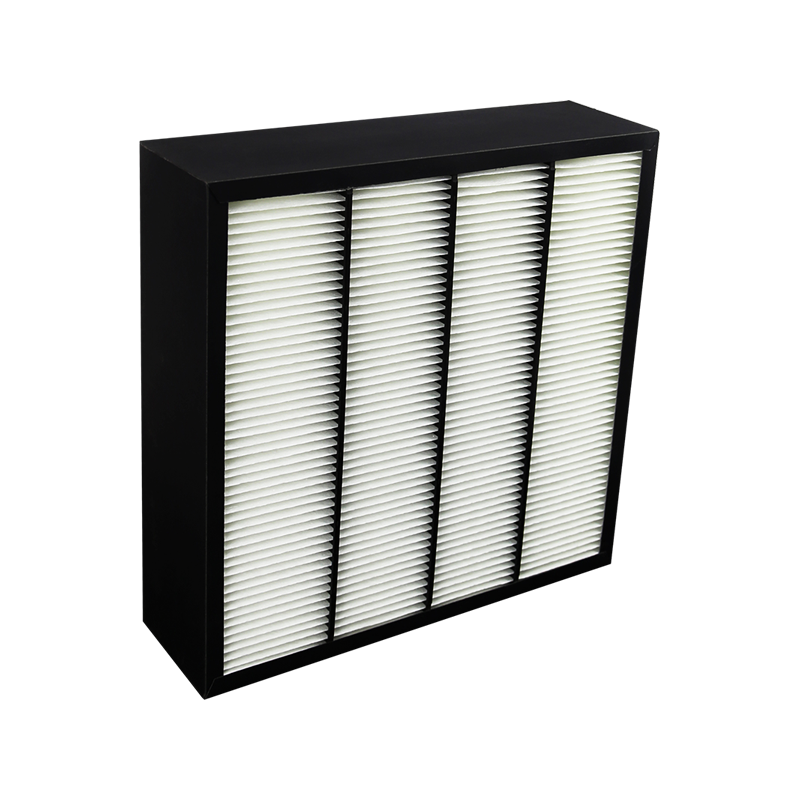

Mini Pleated HEPA Air Filter

Mini Pleated HEPA Air Filter is also used for air purification and filtration. Compared with traditional filters with partitions, it has no obvious partition structure. These filters typically feature a full-depth or V-shaped design to increase surface area and minimize resistance to airflow. With no apparent baffle structure, these filters are designed to reduce resistance to airflow, ensuring that energy consumption is minimized while maintaining high filtration efficiency.
The filter media without partitions is pleated and sealed. It is characterized by large dust holding capacity, compact structure, space saving and cost saving.
2. Efficiency: The internal filter media grade can be selected from G1-U15 according to needs, meanwhile, the filtration efficiency ranges from 10% to 99.97%
3. Frame: The material of the outer frame can be chosen from moisture-resistant coated cardboard, aluminum, plastic and galvanized steel panel according to the use environment.
4. Wide range of applications: This kind of filter can be used in large civil buildings such as office buildings, conference rooms, hospitals, shopping malls, airports and so on as well as ventilation system, central air conditioning, centralized ventilation system and so on. Besides, this kind of filter can make pre-filtration in ordinary industrial plants, clean rooms, clean cycling air system, etc.

Nantong Henka Environment Solutions Co.,Ltd.

Nantong Henka Environment Solutions Co., Ltd was founded in 2004. Henka is one of the famous and professional air filter manufacturers for air purifiers, air cleaners, and ventilation systems. Our air filters include HEPA, VOC removal filters, Formaldehyde removal filters, Activated Carbon filters, Odor removal filters, HVAC filters, i-Hepa ventilation purification devices, and IFD purification devices.
Henka is the customized air filter supplier for the famous brands of air purifiers and air cleaners in the North American market and China market. Henka provides not only air filters but also professional air purification solutions.
Henka is located in Haimen City, Jiangsu Province, which is only 120 kilometers away from Shanghai. Henka has ISO14001:2015, ISO9001:2015 and ISO45001:2018 certifications, efficiency and air resistance test system for filter media, noise test lab, 30 cubic meters test room for formaldehyde and VOC remove efficiency, CADR test room for air purifier. ASHRAE 52.2 is used in testing air filters.
With more than 20 years of experience working with a US engineering team, we can design the product based on the specifications, drawings, samples, or even ideas from our customers, and provide professional air filtration solutions to our customers.

Certificate Of Honor

News

Jiangsu air filter manufacturers talk about: the role of medium-efficiency air filters.
22 Jan, 2024
Many new air manufacturers are equipped with different levels of air filters in the new fan, there are initial filters, medium filters, and high-efficiency filters, some people do not understand: the ...
READ MORE
Activated carbon filter factory share: Why the specific surface area of activated carbon is large but the effect of formaldehyde removal is general.
22 Jan, 2024
Some customers often ask about activated carbon formaldehyde removal when customizing air filters: why some activated carbon has a large specific surface area, and the adsorption value of CTC and iodi...
READ MORE
Shanghai Activated Carbon Filter Factory Share: What is the specific surface area of activated carbon.
22 Jan, 2024
What is the specific surface area definition of activated carbon? The specific surface area is the sum of the surface area outside the activated carbon and the surface area of the internal pores, and ...
READ MORE
Jiangsu Air filter manufacturer: What are the characteristics and uses of high temperature air filters?
22 Jan, 2024
High-temperature high-efficiency filters literally can be seen to have the characteristics of strong heat resistance and, at the same time have the high precision filtration characteristics of the hig...
READ MORE

Message Feedback

Mini Pleated HEPA Air Filter Industry knowledge

How do you tell if your mini pleated HEPA air filter is damaged?

Determining whether a Mini Pleated HEPA air filter is damaged requires carefully inspecting the filter and assessing its overall condition. Here are some steps to help you determine if your Mini Pleated HEPA filter is damaged:

1. Check for visible damage: Check the filter for any visible damage, such as a bent, dented or cracked frame, or holes or tears in the filter media.

2. Check the efficiency of the filter: If the filter is not removing airborne particles as effectively as before, this may be a sign that the filter is damaged or worn.

3. Check the pressure drop: If the pressure drop in your system is higher than normal, this may indicate that the filter is clogged or damaged.

4. Check for dirt or debris: If dirt or debris is visible on the filter surface or in the filter media, this may indicate that the filter is worn or damaged.

5. Check for bad odors: If a bad odor is coming from your system, it could be a sign that the filter has mold or bacterial growth.

6. Check for unusual noises: If the system is making unusual noises, this may indicate that the filter is damaged or improperly installed.

7. Check the airflow: If the airflow in your system is lower than normal, this may indicate that the filter is clogged or damaged.

8. Check for mold or mildew: If mold or mildew is visible on the surface of the filter or in the filter media, this may indicate that the filter is damaged or is not properly removing contaminants from the air.

9. Check filter life: Check the filter life and compare it to the manufacturer's recommended replacement time. If the filter has been used for a long time, it may be worn or damaged.

10. Consult a Professional: If you are unsure about the condition of your filter, it is best to consult a professional for evaluation.

How do mini pleated HEPA air filters achieve their small size?

Mini Pleated HEPA air filters are able to achieve their small size due to their compact, space-saving design and the use of special pleated media. Here are some of the key ways Mini Pleated HEPA filters achieve small size:

1. Pleated Media: Mini Pleated HEPA filters use special pleated media that is folded into a series of small pleats or V-shaped pleats. This design increases the surface area of the filter, allowing it to achieve high-efficiency particle removal at a smaller size.

2. Compact design: Mini Pleated HEPA filter features a compact design with a small footprint and low profile. This design makes it suitable for compact air purification systems where space is limited.

3. Optimized filter media: Mini Pleated HEPA filters use optimized filter media that has high particle removal efficiency and low pressure drop. This design allows the filter to operate efficiently in a smaller size without sacrificing performance.

4. Reduced frame material: Mini Pleated HEPA filters use less frame material than traditional HEPA filters, which helps reduce the overall size of the filter.

5. Space-saving installation: Mini Pleated HEPA filter is designed for space-saving installation and can be easily installed in compact air purification systems without taking up too much space.
